Product Description:

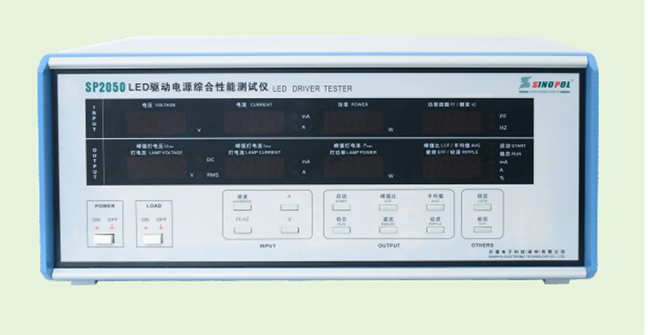

The SP2050 LED driver comprehensive tester can fully test the input characteristics, output characteristics and output starting characteristics of LED drive, power adapter, charger and so on. The instrument is displayed in eight windows, the test speed is fast, the display is intuitive and easy to carry. The test meets the international and domestic standards such as IEC62384: 2006, GB/T 24825-2009 and so on. It is applicable to the research and development department and the laboratory.

Input characteristics

Frequency range: 45Hz to 5kHz;

Voltage range: 1V ~ 300V

Current range: 1mA to 6A

Power range: 0.1W to 1800W

Power test accuracy: (0.1% RD+0.1%FS+1 digit)

Power factor range: 0 ~ + 1. 000

Test accuracy: + 0.2%

Frequency of harmonics: 0-50 times

output characteristic

Voltage range: 1V ~ 300V

Current range: 1mA to 6A

Power range: 0.1W to 1800W

Range of ripple current: 1mA ~ 6A

Test accuracy: + 0.2%
